What are the 3 main components of battery cells?

Here is the article organized by the given headings and following the specified steps:

How does the separator in a battery system allow ions to pass through while isolating the electrodes?

The separator in a battery allows ions to pass through its porous structure while electrically insulating the positive and negative electrodes from each other, preventing a short circuit.

Batteries work by allowing ions to flow between electrodes during charging and discharging. The separator plays an important role by letting only ions pass through its thin porous material, usually made from plastic or ceramics. This allows ion exchange while preventing the electrodes from touching. If the electrodes touched, a short circuit would occur and the battery would no longer function. Different separator materials are used depending on the type of battery. For example, lithium-ion batteries often use polypropylene or polyethylene separators only a few microns thick. Their precise porous structure facilitates rapid ion transport while maintaining electrical isolation of the electrodes. This separator design is key to lithium-ion batteries’ widespread use in devices like phones and laptops.

How does the direction of current flow change between charging and discharging a battery?

A battery’s current flow reverses direction between charging and discharging – into the positive terminal and out the negative during charging, and out the positive and into the negative when powering a device on discharge.

Batteries provide power by allowing current to flow one way when charging and the opposite way when discharging. Here are the key points:

1. CHARGING: Current flows INTO the positive terminal and OUT of the negative terminal. This pumps ions into the electrodes to store energy.

2. DISCHARGING: The current REVERSES direction, flowing OUT of the positive terminal and INTO the negative terminal. This supplies power to a device from the stored energy.

3. This bi-directional current allows batteries to both receive and deliver electrical energy on demand. Without the reversal, batteries could only charge or discharge, not both.

4. Different types of batteries, like lead-acid in cars or lithium-ion in phones, all follow this same charging and discharging current direction pattern. It is fundamental to how batteries store and release power.

How do lithium-metal batteries differ from lithium-ion batteries in terms of electrode composition?

Lithium-ion batteries use carbon anodes whereas lithium-metal batteries use metallic lithium foil anodes, but both battery types commonly have lithium metal oxide cathodes.

Both lithium-ion and lithium-metal batteries are lithium-based battery types, but they differ in the composition of one key electrode:

1. ANODE: Lithium-ion batteries use a carbon-based material like graphite for the anode. Lithium-metal batteries instead employ metallic lithium foil.

2. CATHODE: The cathode is typically a lithium metal oxide compound for both battery types.

3. This difference arises from lithium metal’s reactivity – it forms dendrites on charge that can cause shorting. The graphite anode prevents this in lithium-ion batteries.

4. As a result, lithium-ion batteries have greater safety and cycle life, making them prevalent in consumer devices. Research continues on developing safe lithium-metal batteries for electric vehicles.

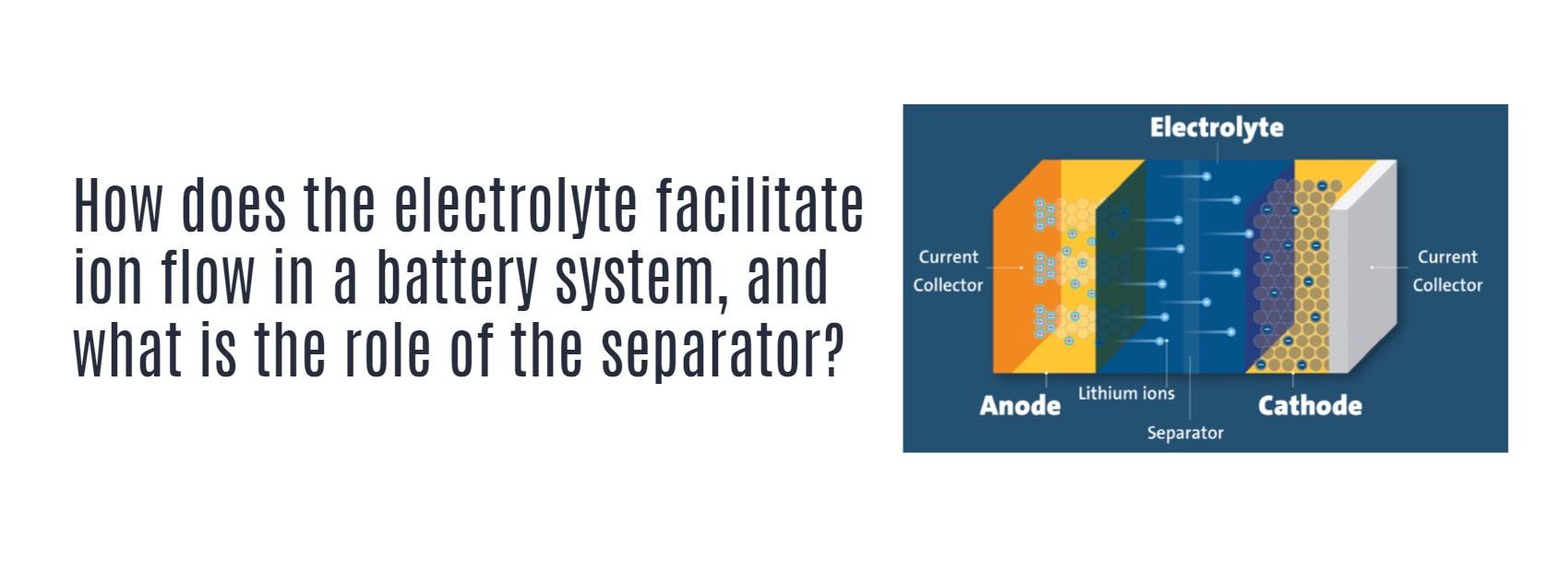

How does the electrolyte facilitate ion flow in a battery system, and what is the role of the separator?

An electrolyte facilitates ion flow between electrodes in a battery, while the separator permits ion passage through its porous structure to complete the circuit but blocks electrode contact to prevent shorting.

Batteries work through the movement of ions between electrodes. Here are the roles of two important components:

1. ELECTROLYTE: This liquid or gel contains ions that FLOW between the cathode and anode during charging and discharging. Its ions ferry the battery’s charge.

2. SEPARATOR: Sitting between electrodes, its porous nature ALLOWS ions to pass through while its insulating properties PREVENT the electrodes from PHYSICALLY TOUCHING. If they touched, a short would disable the battery.

3. Together these enable ion exchange while keeping electrodes isolated. Different types are used – lithium-ion often employs a polymer gel electrolyte and microporous plastic or ceramic separator.

4. Proper electrolyte/separator selection based on battery chemistry is vital for performance, safety and cycle life. Advanced materials continue improving these components.

FAQS

Why EMS is Essential in BESS

An Energy Management System (EMS) is crucial in a Battery Energy Storage System (BESS). It consists of sensors, meters, and controllers that track energy metrics in real-time. The EMS enables seamless communication between its digital directives and the BESS’s physical operations, ensuring precise energy management. This integration optimizes the performance of the BESS, allowing for cost-effective and efficient operation in coordination with other generation sources.

1. Real-time Energy Tracking: The EMS utilizes sensors and meters to continuously monitor energy metrics in real-time. This data provides valuable insights into the performance and operation of the BESS, enabling precise energy management.
2. Seamless Communication: With the help of controllers, the EMS ensures seamless communication between its digital directives and the physical operations of the BESS. This integration allows for efficient coordination and control, optimizing the BESS’s performance.
3. Cost-effective Operation: By accurately tracking and managing energy consumption and generation, the EMS enables cost-effective operation in coordination with other generation sources. This ensures that the BESS operates efficiently, maximizing the benefits of energy storage investments.

How SCADA Controls BESS Operations

1. Real-time Monitoring and Control: SCADA systems consist of hardware and software components that continuously monitor and control various aspects of the BESS. These include energy flow, temperature, and state of charge. By acquiring real-time data, SCADA ensures that the BESS operates optimally and within desired parameters.
2. Supervisory Control: SCADA provides supervisory control capabilities, allowing operators to remotely monitor and control the BESS from a central control room. This enables efficient coordination and decision-making, ensuring the smooth operation of the system.
3. Data Acquisition and Analysis: SCADA systems collect data from sensors and meters installed within the BESS. This data is then analyzed to identify trends, patterns, and anomalies. By leveraging this information, operators can make informed decisions to optimize the performance and efficiency of the BESS.

Why BESS Requires Fire Suppression

1. Risk of Thermal Runaway: Lithium-ion batteries, commonly used in BESS, have a higher risk of thermal runaway. This occurs when the battery overheats, leading to a chain reaction of increasing temperature and energy release. If not controlled, thermal runaway can result in fires or explosions.
2. Mitigating Fire Hazards: To mitigate the fire hazards associated with thermal runaway, BESS installations implement fire suppression measures. These measures can include fire extinguishers, specialized suppression agents, or even dedicated fire suppression systems designed specifically for BESS.
3. Ensuring Safety: By having fire suppression systems in place, BESS installations can promptly respond to and suppress any potential fires. This helps protect the system itself, as well as the surrounding infrastructure and personnel, ensuring the overall safety of the BESS installation.

How HVAC Maintains BESS Efficiency

1. Temperature and Humidity Control: HVAC systems regulate the temperature and humidity levels within the BESS facility. By maintaining an optimal range, HVAC systems prevent excessive heat buildup, which can degrade battery performance and shorten their lifespan. Additionally, controlling humidity helps prevent moisture-related issues that could impact the integrity of the batteries.
2. Energy Loss Reduction: Proper temperature control provided by HVAC systems helps minimize energy losses within the BESS. High temperatures can increase internal resistance and decrease battery efficiency. By keeping the batteries within the recommended temperature range, HVAC systems help reduce energy losses and maximize the overall efficiency of the system.
3. Equipment Protection: HVAC systems ensure a stable environment for the BESS equipment. They help dissipate heat generated by the batteries and other components, preventing overheating and potential damage. By maintaining a consistent operating temperature, HVAC systems contribute to the reliable performance and longevity of the BESS.

What Role Does Controller Play in BESS

1. Performance Optimization: The controller acts as the brain of the BESS, continuously monitoring and analyzing various parameters such as battery state of charge, voltage, and temperature. Based on this data, the controller optimizes the charging and discharging process to maximize the efficiency and lifespan of the batteries. It ensures that the BESS operates within safe operating limits and adapts to changing grid conditions.
2. Energy Flow Management: The controller manages the flow of energy within the BESS, coordinating the charging and discharging of the batteries. It ensures that energy is stored during periods of low demand or excess generation and released when demand is high or renewable generation is low. This helps balance the grid and maximize the utilization of renewable energy resources.
3. Grid Interaction: The controller enables communication and coordination with the grid. It allows the BESS to participate in grid services such as frequency regulation and voltage support, contributing to grid stability and reliability. The controller also facilitates the integration of BESS with renewable energy sources and other grid assets, enabling efficient energy management and grid interaction.
