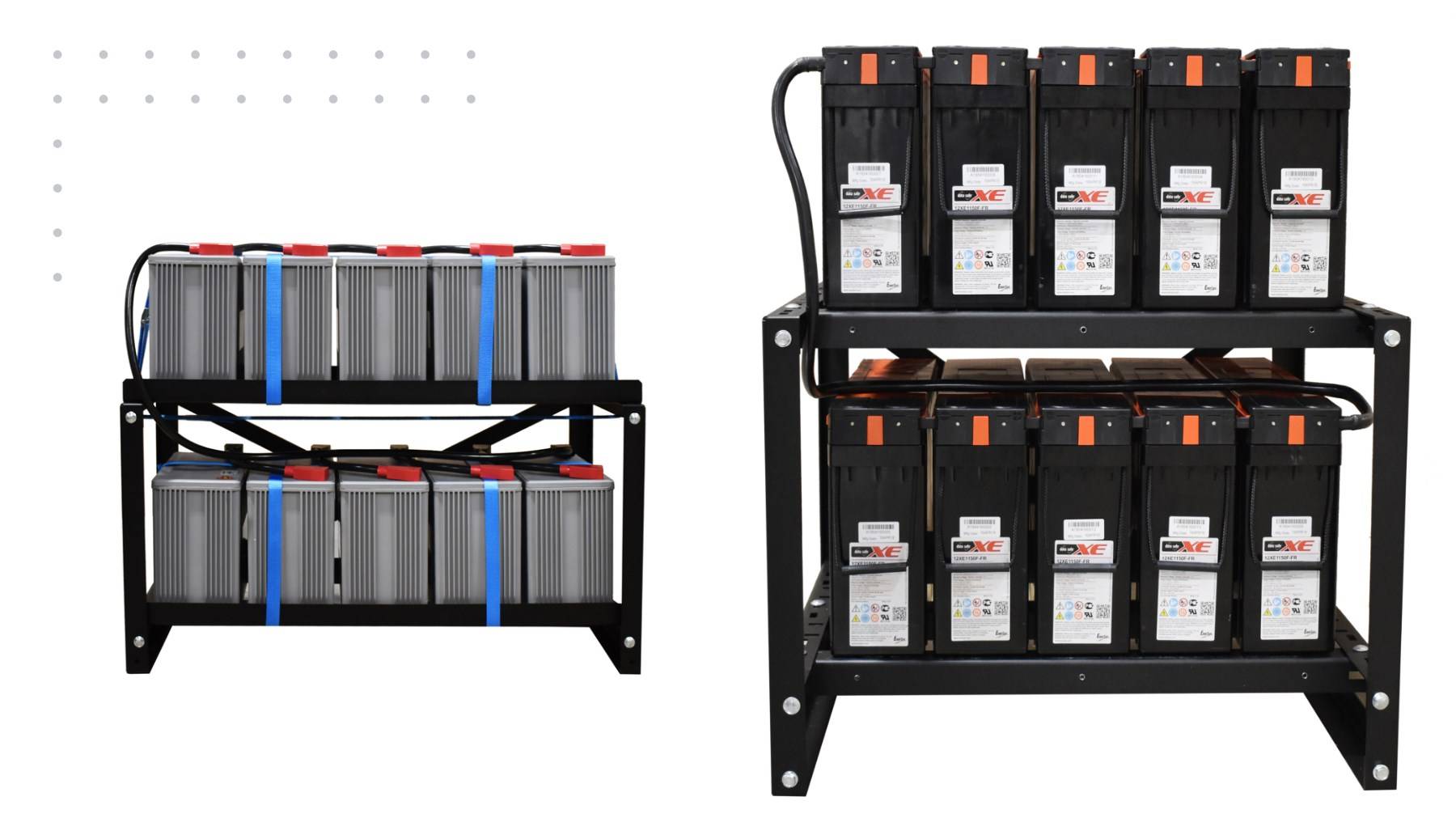

At Redway Power, we understand the crucial role battery racks play in maintaining an organized and efficient power storage system. This comprehensive guide explores our advanced Top Terminal Battery Racks, designed to offer a reliable, adaptable, and economical solution for your energy storage needs. Engineered to support up to ten 12V/200AH VRLA batteries, our racks are a testament to robust design and ease of installation.
Key Features of Our Top Terminal Battery Racks
Heavy-Duty, Bolt-Together Design
Our top terminal battery racks boast a heavy-duty, bolt-together design. This ensures not only durability and stability but also facilitates a seamless assembly and installation process. The robust construction is capable of withstanding the demands of various environments, ensuring the longevity and reliability of your battery storage system.
Adjustable for a Wide Range of Battery Sizes
Flexibility is a hallmark of our battery racks. They are adjustable to accommodate a broad range of top terminal batteries available on the market today. This adaptability means our racks can be customized to fit different battery sizes, making them an ideal choice for diverse applications.
Standard and Seismic Rack Options
We offer both standard and seismic rack options, ensuring our battery racks meet the specific needs of your installation environment. Whether you require a standard setup or enhanced stability for seismic areas, our racks are equipped to handle your requirements.
Packaged for Efficient Shipping
Our battery racks are designed with logistics in mind. They are packaged for UPS/FedEx shipping, which simplifies the transportation process, reduces shipping costs, and ensures your product arrives safely and in optimal condition.
Technical Specifications
Dimensions and Weight
- Weight: 52 lbs
- Dimensions: 39 × 18 × 22 inches
These dimensions reflect the compact nature of our battery racks, allowing for efficient space utilization without compromising on storage capacity or stability.
Rack Options and Hardware
We provide a variety of options to suit different installation needs:
- Seismic 1/4″
- Seismic 3/8″
- Standard 1/4″
- Standard 3/8″
Each rack includes necessary hardware and instructions for assembly. Additionally, a 2/0 AWG jumper cable for tier-to-tier battery connections is provided, though interconnect busbars are typically supplied by battery manufacturers.
Installation and Assembly Instructions
Our top terminal battery racks are engineered for quick assembly and installation. The bolt-together design minimizes the complexity of setup, allowing for a straightforward installation process that can be completed with basic tools. Here is a step-by-step guide to help you through the process:
Step-by-Step Assembly Guide
- Unpack the Components: Ensure all parts and hardware are accounted for based on the provided checklist.
- Assemble the Base: Start with the base section, bolting the components together as per the instructions.
- Add the Support Beams: Attach the vertical support beams to the base, ensuring they are securely fastened.
- Install the Battery Trays: Position and secure the battery trays on the support beams at the desired height.
- Final Adjustments: Check all connections and tighten bolts to ensure stability and safety.
- Install Batteries: Place your batteries on the racks, connecting them using the provided 2/0 AWG jumper cable.
Conclusion
Our Top Terminal Battery Racks are designed to provide a robust, flexible, and economical solution for battery storage. With options for standard and seismic environments, adjustable configurations, and a straightforward assembly process, these racks are the ideal choice for ensuring your power storage system is organized and efficient.
