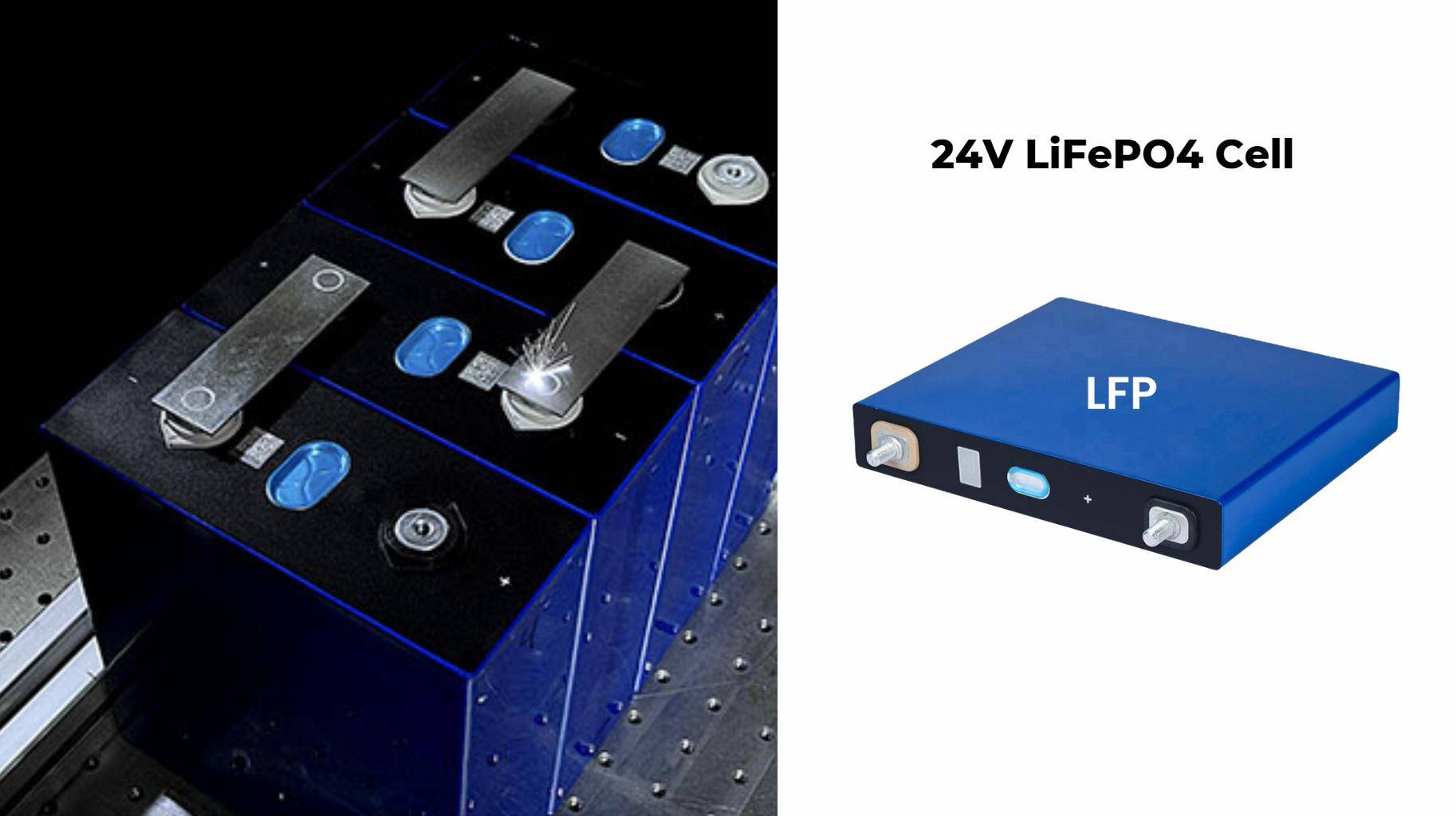

24V LiFePO4 Cell Charging and Discharging Voltage Chart

In the evolving landscape of energy storage, the 24V LiFePO4 (Lithium Iron Phosphate) battery stands out for its superior performance and reliability. As a leader in battery technology, understanding the voltage characteristics of this cell type is crucial for optimizing its use in various applications. This comprehensive guide provides an in-depth voltage chart for the 24V LiFePO4 battery, offering crucial insights into its charging and discharging behaviors.

Voltage Characteristics of 24V LiFePO4 Battery

The 24V LiFePO4 battery delivers exceptional performance by maintaining stable voltage levels throughout its charge cycle. This battery technology is renowned for its high thermal stability, long cycle life, and safety. Below, we outline the voltage readings at different states of charge (SoC) to help you better understand and manage the performance of your battery.

State of Charge (SoC) and Corresponding Voltage

These voltage levels represent the terminal voltage of the battery at various states of charge. Monitoring these levels helps in preventing over-discharge and overcharging, ensuring the longevity and efficiency of the battery.

Charging and Discharging Characteristics

Charging Characteristics

Proper charging practices are essential for the health and performance of LiFePO4 batteries. Key aspects include:

• Charging Voltage: The recommended charging voltage for a 24V LiFePO4 battery is typically around 29.2V for full charge. Overcharging beyond this voltage can lead to decreased battery life and potential safety hazards.
• Charging Current: The charging current should be regulated according to the battery’s specifications. Fast charging should be avoided unless the battery is specifically designed for high current rates.
• Charge Cycles: LiFePO4 batteries support numerous charge-discharge cycles with minimal capacity loss, making them ideal for applications requiring frequent cycling.

Discharging Characteristics

Discharging a 24V LiFePO4 battery involves several critical factors:

• Discharge Voltage: To ensure optimal performance, avoid discharging the battery below 20.0V. Continuous deep discharges can significantly reduce battery life.
• Discharge Current: Similar to charging, the discharge current should be consistent with the battery’s rated specifications to prevent overheating and ensure safe operation.
• Temperature: LiFePO4 batteries operate efficiently across a wide range of temperatures, but maintaining them in moderate environments helps in maximizing performance and extending lifespan.

Optimal Usage Practices for 24V LiFePO4 Batteries

Maintaining Battery Health

To maximize the lifespan and efficiency of your 24V LiFePO4 battery, adhere to the following best practices:

• Regular Monitoring: Use a battery management system (BMS) to continuously monitor voltage levels, temperature, and charge cycles. This ensures the battery operates within safe parameters.
• Proper Storage: Store batteries in a cool, dry place to prevent degradation. Avoid extreme temperatures and humidity levels that could affect battery performance.
• Preventive Maintenance: Regularly check for any signs of damage or wear. Keeping the battery clean and free from contaminants helps in maintaining optimal performance.

Charging and Discharging Recommendations

• Avoid Overcharging: Use a charger specifically designed for LiFePO4 batteries to avoid overcharging. Set the charger to the recommended voltage levels to maintain battery health.
• Controlled Discharge: Implement procedures to avoid deep discharging. Automated cut-off mechanisms can help prevent the battery from dropping below safe voltage levels.

Redway Power: Your Partner in LiFePO4 Battery Solutions

As a leading wholesaler and manufacturer of LiFePO4 batteries, Redway Power excels in providing high-quality solutions tailored to diverse applications. Specializing in car batteries and golf cart batteries, Redway Power is a trusted partner for B2B and OEM clients globally. Our expertise extends to delivering custom battery solutions that meet specific needs while ensuring quality and reliability at every stage.

Conclusion

Understanding the voltage characteristics and adhering to recommended charging and discharging practices are vital for optimizing the performance of 24V LiFePO4 batteries. By following the guidelines outlined in this article, you can significantly enhance the battery’s lifespan and operational efficiency. Redway Power remains committed to providing top-tier LiFePO4 battery solutions, ensuring that your energy storage needs are met with the highest standards of excellence.

FAQs

What is the charging voltage for a 24V LiFePO4 battery?
The charging voltage for a 24V LiFePO4 battery is typically between 28.8 and 29.2 volts.

What is the cut-off voltage for a 24V LiFePO4 battery?
The cut-off voltage for a 24V LiFePO4 battery is usually around 20.0 volts.

What is the voltage of a 24V lithium battery when fully charged?
A 24V lithium battery is fully charged at approximately 28.8 to 29.2 volts.

What is the best charging voltage for a 24V battery?
The best charging voltage for a 24V LiFePO4 battery is generally between 28.8 and 29.2 volts.

What should my 24V battery read when fully charged?
A fully charged 24V LiFePO4 battery should read between 28.8 and 29.2 volts.

What setting do you charge a 24V lithium battery?
For a 24V lithium battery, you should use a charger set to a voltage of 28.8 to 29.2 volts and a current recommended by the battery manufacturer.
